01000
- 型 号：
- 01000
- 订货量：
- (只)：>=100
- 发货地点：
- 广东省/深圳
- 产品类别：
- 其他电容器
- 更新时间：
- 2022/4/22 11:15:33
商品详情

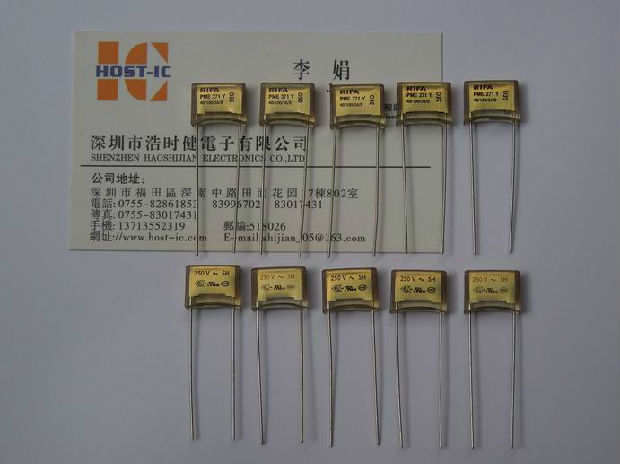

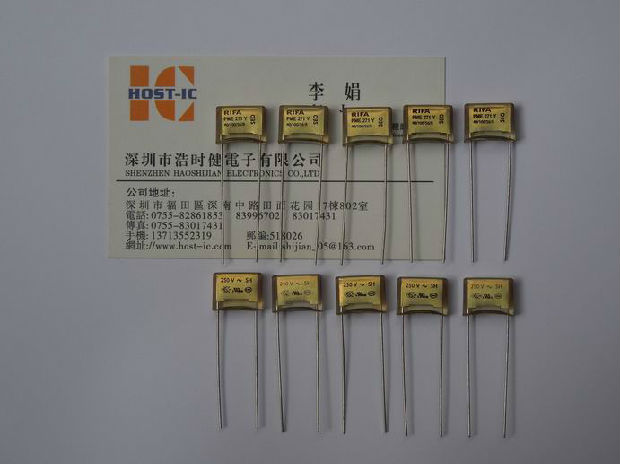

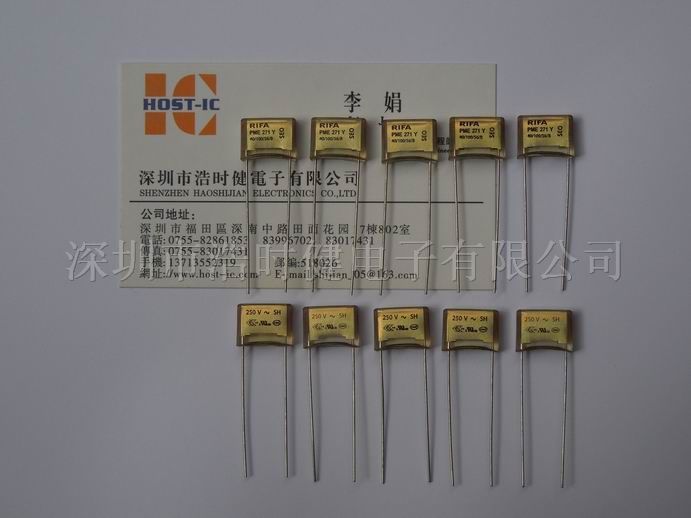

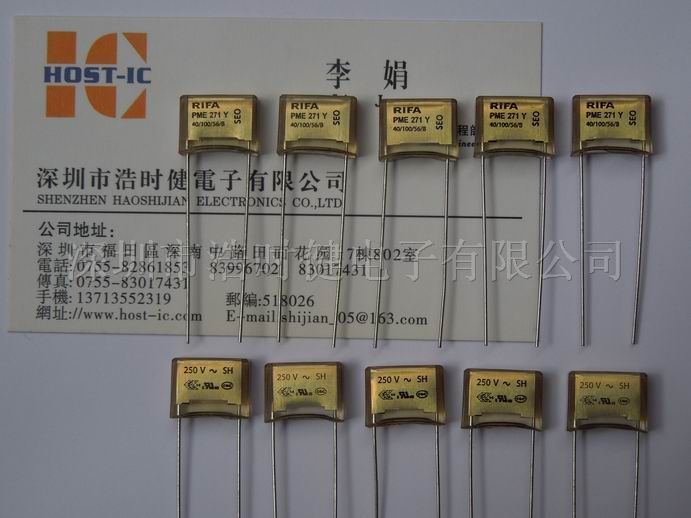

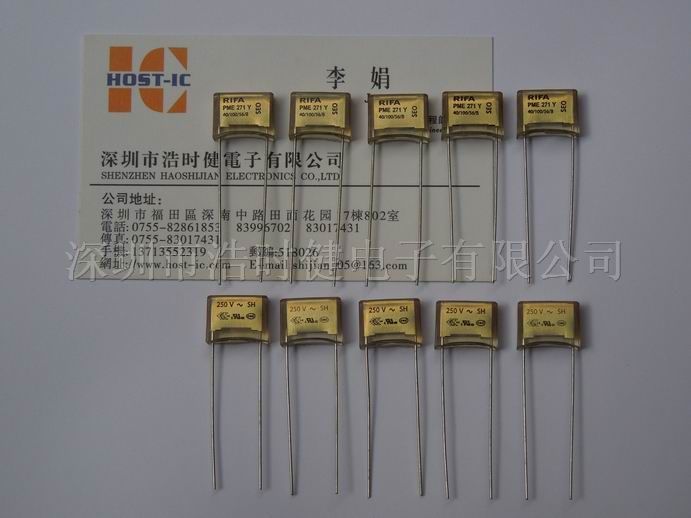

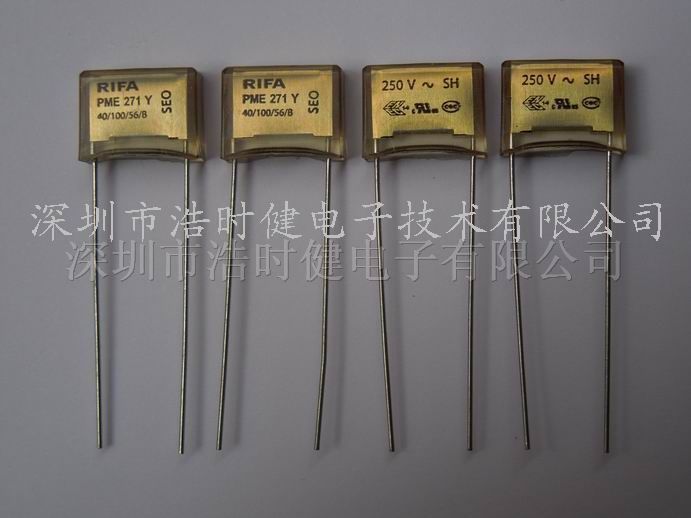

01000：y电容器
我们提供各种电容器产品，包括钽、陶瓷、铝电解和表面贴装低esr聚合物电容器。
y电容器
| 电容 | 器件型号 | 符合rohs | 额定电压 | | | | | 技术图纸 | ||||||||||
| 4,700 pf | 03285 | 是 | 250 vac | |||||||||||||||
| 1,500 pf | 00770 | 是 | 250 vac | |||||||||||||||
| dxf | ||||||||||||||||||
| 4,700 pf | 01000 | 是 | 250 vac | |||||||||||||||
| 1,500 pf | 30802 | 是 | 250 vac | |||||||||||||||
| 0.01 μf | 33643 | 是 | 300 vac | |||||||||||||||
| 0.022 μf | 03093 | 是 | 250 vac | |||||||||||||||
overview
the pme271y series is constructed of multilayer metallized paper encapsulated and impregnated in self-extinguishing material meeting the requirements of ul 94 v–0.
benefits
• approvals: enec, ul, csa, cqc
• rated voltage: 250 vac 50/60 hz
• capacitance range: 0.001 – 0.1 μf
• lead spacing: 10.2 – 25.4 mm
• capacitance tolerance: ±20%
• climatic category: 40/100/56/b, iec 60068–1
• tape and reel packaging in accordance with iec 60286–2
• rohs compliant and lead-free terminations
• operating temperature range of -40˚c to 100˚c
• 100% screening factory test at 3,000 vdc
• highest possible safety regarding active and passive flammability
applications
typical applications include worldwide use as electromagnetic interference suppressor in all y2 applications, line-to-earth.
